Under Bench Blizzard Ice Maker - AIR COOLED
Model SN-101B

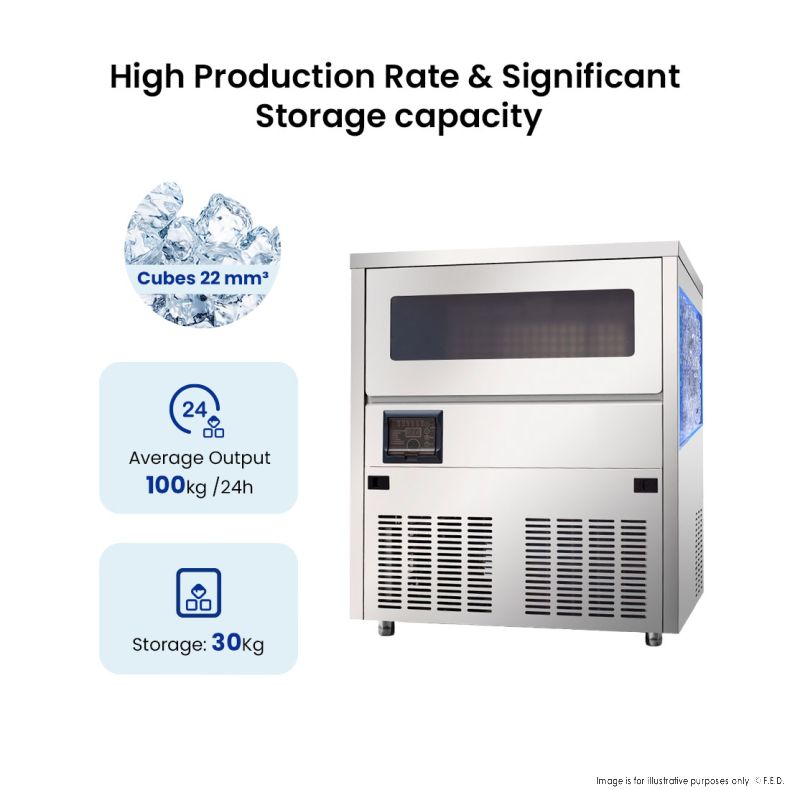

Output/24h: Up to 100 kg
Bin Storage Capacity: Approx. 30kg (Bin Control Setting Approx. 14kg)
Key Features
- U.S. Morrill Water Pump
- German ËBM-Pabst fans
- Hisakage PCL
- 23mm³ ice-cubes
- Denmark Danfross Expansion Valve & Dry Filter
- Japanese Saginomiya Solenoid & Hydraulic Valve
- Unique ice type gives people a feeling of pure and fresh, fashionable, and cool, refreshing
- R290 Natural Refrigerant
- Adjustable feet
- Includes an internal drain pump
- Storage（kg）: 30
2 Years Parts and Labour Warranty
| Doors | 1 |
|---|---|
| Door Type | Hinged Doors |
| Body | Stainless Steel |
| Net Weight (Kg) | 58 |

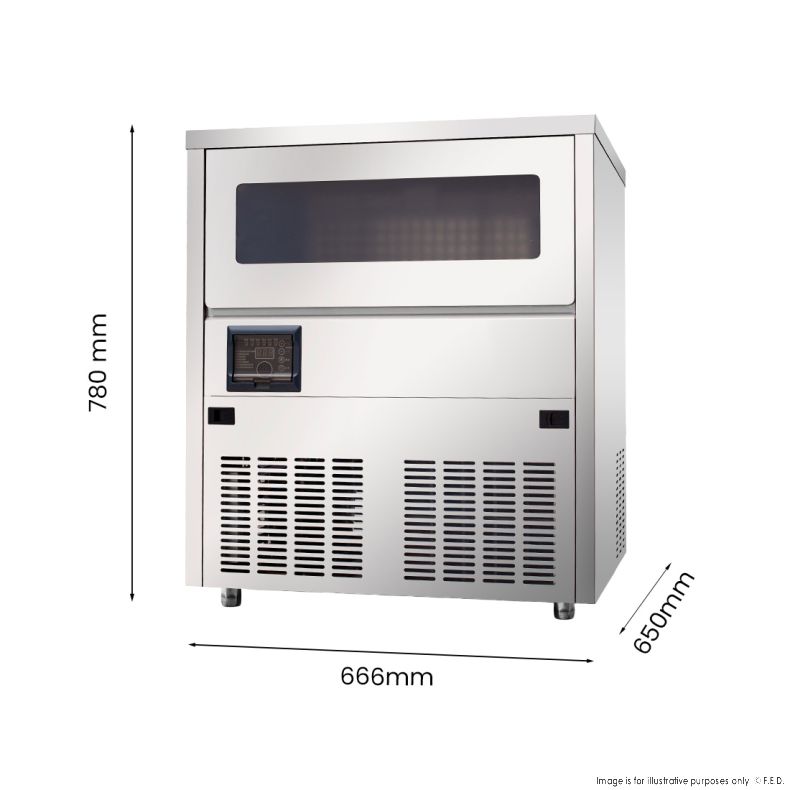

| Width (mm) | 666 |
| Depth (mm) | 650 |
| Height (mm) | 780 |
| Packing Width (mm) | 760 |
| Packing Depth (mm) | 746 |
| Packing Height (mm) | 780 |
| Power | 240V; 7000W; 10A outlet required |
| Warranty | 2 Years Parts and Labour |
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
- Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
- Sanitise water reservoir, distribution tubes, and bin interior.
- Clean and flush condenser coils (air-cooled units).
- Inspect condenser fan motor and blades.
- Check inlet water valve, float, and filters for correct operation.
- Verify ice thickness probe or sensor calibration.
- Inspect refrigerant pressures, superheat, and subcooling - adjust if necessary.
- Test compressor amperage and general performance.
- Inspect water pump operation and clean pump housing.
- Check harvest cycle operation (heater or hot gas valve).
- Inspect electrical connections, relays, and contactors.
- Replace inline water filter cartridge.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
Call 1300 887 055 or email
[email protected]
